MONITOR - POINT LEVEL CONTROLS

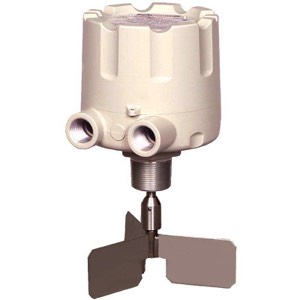

Rotary Paddle Level Switches - Models KA and KAX

Economical point level control sensors for the detection of dry bulk materials. This level switch is ideal for use as low level and high level indicators in bins, silos, hoppers, and other vessels.

Accessories for Models KA and KAX

PADDLE ASSEMBLIES: Monitor offers a variety of interchangeable paddle assemblies to meet the needs of a wide variety of applications. Different material densities, particle sizes and flow characteristics require specific paddles to provide optimum performance.

Rotary Paddle Level Switches
Standard Stainless Steel Three Vane Paddle

Standard Stainless Steel
Three Vane Paddle

For use with For use with average to high bulk density materials.

Replacement Motor

Replacement Motor

Insertable * Stainless Steel Scimitar Single Vane Paddle

Insertable * Stainless Steel
Scimitar Single Vane Paddle

Provides low and high level control for light to average weight materials.

Flexible Coupling

Flexible Coupling

The flexible coupling works to absorb heavy loads, side loads and loads caused by product surges, thus protecting the internal workings and extending the life of the paddle unit.

Shaft Extensions

Shaft Extensions

Solid shaft extensions are available in a variety of lengths up to 144 inches (3.6 m) to meet these demands. A flexible cable extension is also available. This 6.5 foot (2.0 m) flexible extension can be easily shortened in the field by the user. The use of the flexible cable extension for lengths greater than 3 feet (0.9m) requires the use of a guard to ensure proper activation of the rotary paddle bin monitor.

Mounting Plates

Mounting Plates

Mounting plates allow the paddle units to be mounted from the outside of a vessel to curved or flat surfaces. All mounting plates featured below mount via six bolts.

Stacks Image 86

Rotary Paddle - SafePoint®
Truly Fail-Safe Sensor

Economical point level control sensors for the detection of dry bulk materials. This level switch is ideal for use as low level and high level indicators in bins, silos, hoppers, and other vessels.

RF Capacitance – MK2

RF Capacitance – MK2

TrueCap® RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for powder and bulk solids applications, as well as liquid and slurry applications. The Model MK2 is a state-of-the-art point level sensor providing maximum performance, reliability and value.

RF Capacitance – MK2e

RF Capacitance – MK2e

TrueCap® RF capacitance probes are designed to provide a high level of sensitivity, stability and durability for powder and bulk solids applications, as well as liquid and slurry applications. The model MK2e provides high quality and performance at the lowest possible price.

Proximity Switch

Proximity Switch

Solid state compact capacitance-type point level switches used to detect the absence or presence of bulk solids.

Vibratory Probe – PZP

Vibratory Probe – PZP

The vibrating probe principle eliminates problems associated with temperature, humidity and material changes, while providing state-of-the-art electronic reliability and accuracy that requires no calibration. The Model PZP point level sensor provides the ultimate in sensitivity and performance.

Vibratory Probe – VibraRod

Vibratory Probe – VibraRod™

The vibrating probe principle eliminates problems associated with temperature, humidity and material changes, while providing state-of-the-art electronic reliability and accuracy that requires no calibration. The VibraRod™ provides reliable point level measurement sensing in a wide variety of applications within powder and bulk solids markets.

Diaphragm Switches

Diaphragm Switches

The flush mount, non-intrusive BINATROL® diaphragm level switch is ideally used when vessel size or internal clearance is limited, or where protrusion into a vessel is not acceptable.

Tilt Switches - TC-1 and TC-3

Tilt Switches - TC-1
and TC-3

The Model TC-1 and TC-3 tilt switches can be used as high level indicators to eliminate bin overflow or to control levels in open piles.

MONITOR - CONTINUOUS LEVEL MONITORING

continuous level measurement

Weight & Cable-Based

The SiloPatrol® SE continuous level measurement and Inventory monitoring system is the first truly robust smart cable-based (weight and cable / plumb bob / yo yo type) bin level sensor system. It is a field-proven approach to reliably monitoring the level of material in bins, silos and tanks up to 150 ft (45.7 m) in height.

HMI2 Operator - Interface Control Console

HMI2 Operator - Interface Control Console

The HMI2 operator interface control console provides convenient, local interface for Monitor’s “Smart” RS-485 SiloPatrol® SMU SE cable-based inventory monitoring sensors and/or Flexar® guided wave radar sensors. HMI2 allows for monitoring up to 32 SMU SE and/or Flexar sensors.
The multi-functional HMI2 controls sensor operations, displays measured and calculated data and performs/displays system and sensor diagnostic messages via two separate RS-485 communication networks.

The HMI2 display screen can be easily switched to view calculated level, volume, weight or percent in addition to the basic distance measurement.

flexar guided wave radar continuous level measurement

Flexar® Guided Wave Radar

Flexar guided wave radar continuous level monitoring technology has been installed in thousands of powder and bulk solids applications worldwide. We uniquely combine this strategically acquired technology with five decades of expertise and focus in powder and bulk solids applications, and with our SiloTrack™ inventory management software interface.

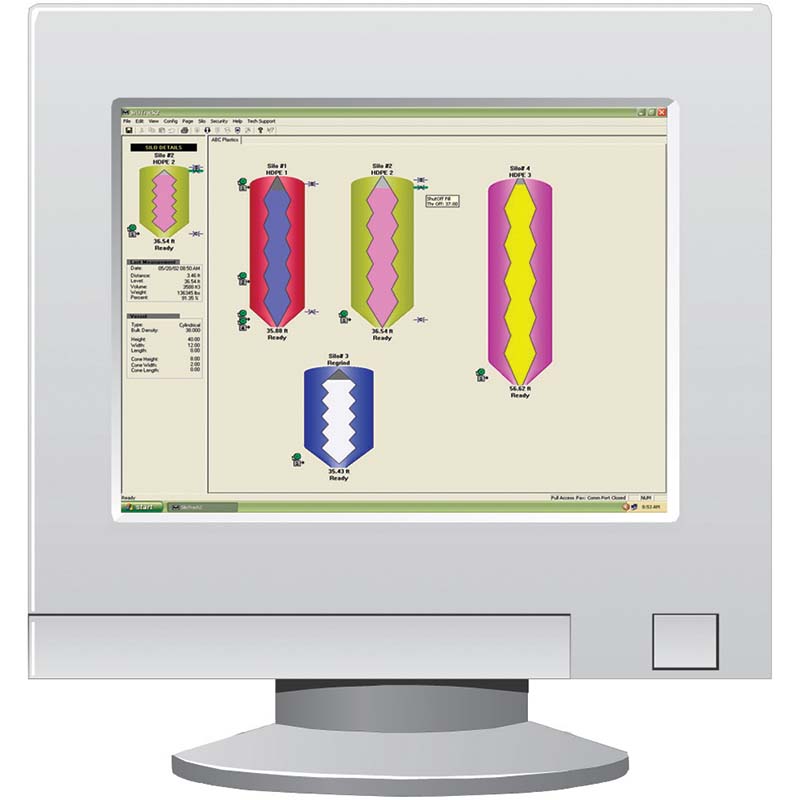

SiloTrack Inventory Management Software

SILO TRACK™ - Inventory Management Software V3.5

SiloTrack™ Inventory Management Software Version 3.5 is the next evolution of Monitor’s popular PC-based application software that provides users with an unsurpassed, flexible graphical interface for our industry-standard SiloPatrol® SE Model SMU inventory monitoring sensors and our Flexar® guided wave radar continuous level measurement sensors. Refer to bulletins 343P (SMU) and 353P (Flexar) for more information.

SiloTrack software includes a Server and Client version. Together SiloTrack Server and Client provide inventory monitoring and management capability to a virtually unlimited number of users. Users can be internal and external to your facility, allowing you to easily implement remote inventory monitoring and vendor managed inventory.

WIRELESS COMMUNICATION INTERFACE

Wireless Communication Interface

Flexibility

The Wireless Communication Interface can be utilized in numerous applications, even with multiple sensor networks and over 100 sensors. Each sensor network will require a wireless transceiver at the PC. A wireless transceiver is also required at the sensor location. Up to 16 sensors can be connected with one wireless transceiver pair.

Broken Bag Detector

DUST ALARM® - Broken Bag Detector

The DustAlarm® Broken Bag Detector (Particle Emission Detector) provides reliable and economical detection of leaks and filter failures in many powder and bulk solids industries.

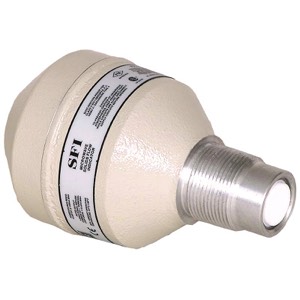

Monitor - Solids Flow Monitor

Monitor - Solids Flow Monitor

The SFD-2 and SFI use low power microwaves to sense motion within the chute or pipeline being monitored. Microwaves are virtually unaffected by ambient noise and light, heat, humidity, pressure, vacuum, high or low temperatures or dust. This provides maximum effectiveness in typical industrial application environments. These advantages over sonic or mechanical flow monitors make microwave technology the best choice for solids flow monitoring.
