SOLENOID VALVES
AAA, ARO, ASGO, BRAY, GOYEN, JEFFERSON, KEYSTONE, MAC, PARKER,
PNEUMATIC, REXROTH, SCHRADER BELLOWS, SMC, WAM
BUTTERFLY VALVES
SILO PREASURE RELIEF VALVES
Adjustable Weighted Pressure relief Valve - VCP Pressure Relief Valve that vents positive and negative pressure
ROTARY VALVES
Rotolok and Wam Rotary Valves, Metering valves and Shutoff Valves - Metric or Standard, Round or Squares, and ceramic lined
Ball valves available in bronze, brass, carbon steel and stainless steel

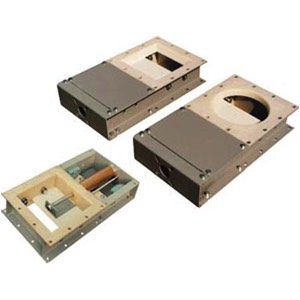

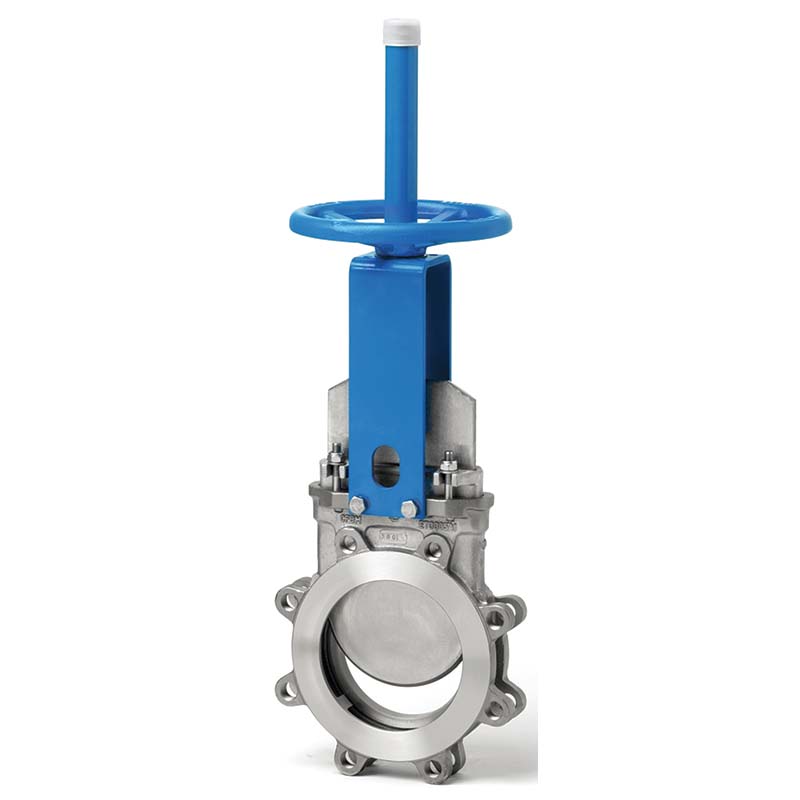

Wam and Orbinox slide and knife gates, round or square opening and operated with
manual handle or pneumatic cylinders.
CLAM SHELL BIN GATES
Complete line of Simplex and Duplex bin gates constructed of heavy gauge steel plate, abrasion-resistant or stainless steel. Any model can be adapted for pneumatic operation. Easily attached to hoppers, bins, and chutes. Numerous sizes in stock.
THE ORIGINAL ROTATING DISC VALVE
Invented by Everlasting Valve more than a century ago, our self-lapping, Rotating Disc Valve remains the toughest, longest lasting, best performing valve on the market today.
Process Valves
Used in dry powders or slurries of erosive media. Suitable for handling abrasive particulate in temperatures up to 1500°F and pressures as high as 10,000 psig, in sizes 1" through 18".
Diverter Valves
Can be switched without stopping the conveyor compressor. Used for slurries and dry powders, including: Portland cement, bottom and fly ash, titanium dioxide, tabular alumina, alumina silica, kaolin, Raney nickel catalysts and metal silicon powders.
Bulk Material Valves
Designed for pressurized (up to 100 psig) and vacuum systems, including dense and dilute phase pneumatic conveying systems, for transporter fill valve, discharge, and vent applications, transfer lines, under baghouses, silos and dust collectors.
Boiler Blowdown Valves
Our boiler blowdown valves are manual on/off valves that effectively blow down sludge formed in steam boilers. Available in quick opening, slow opening straight and angle configurations.
SHEFFER PNEUMATIC & HYDRAULIC CYLINDERS
BUILT TO PERFORM
Sheffer’s pneumatic actuators and cylinder series covers a wide range of applications from custom tie-rod cylinders to NFPA cylinders. With bores ranging from 3/4" thru 14" as catalog standards and larger as custom, with pressure ratings up to 250 PSI, these reliable, long-lasting cylinders bring Sheffer performance anywhere you require linear pneumatic actuators.
A Series – heavy-duty pneumatic cylinders
MA Series – medium-duty pneumatic cylinders
C20 Series – cast-iron pneumatic cylinders
AA Series – low-cost aluminum pneumatic cylinders
CL Series – heavy-duty clamp pneumatic cylinders
BUILT TO LAST
With quality, reliability and the ability to handle ultra-high pressure, Sheffer hydraulic cylinders bring numerous advantages to every application, from custom tie-rod cylinders and hydraulic actuators to NFPA cylinders.
HH Series – heavy-duty hydraulic cylinders
MH Series – medium-duty hydraulic cylinders
UH Series – ultra high-pressure hydraulic cylinders
CL Series – heavy duty clamp hydraulic cylinders
ACCESSORIES
Top to bottom.
Designed especially for our high-performance hydraulic and pneumatic cylinders, Sheffer accessories enable you to get maximum performance from your solution. And because they are built to the same standards as our other products, you know they're built to last.
• Electronic positioning devices
• Valve mounting blocks available
• S.A.F.E. – Self Aligning Flange End
• Uni-Lign – Universal Alignment Mounting Accessory
• Clevis and pivot mounting brackets
• Jam nuts
• Front head spacer bars
• Rod clevis and pins
• Pin and retainer assemblies
• Rod aligning coupler
• Rod eyes
• Weld plates
MOTION CONTROLS AIR CYLINDERS
D SERIES:
Non-Metallic Bearings - A specially compounded reinforced Teflon material is used for the piston and rod bearings, assuring low friction characteristics. Bearing assembly is easily removed for quick replacement.
Non-Lube Operation - Long life D cylinders are specifically designed for non-lube operation.
Cushions - High energy absorption poppet style adjustable cushions are available as a standard option. Cushion adjusting screw is normally located in position number 4.
Piston Rod - Hard chrome plated steel, ground and polished. Two wrench flats standard on all bore sizes. Full male national coarse threads are standard. All other threads available as options.
Tubing - Hard coated I.D. aluminum for corrosion resistance and low friction.
Seals - All dynamic seals are self-adjusting Block Vee Buna-N U-cups.
End Caps - Machined high strength aluminum alloy.
Pressure Rating - 250 psi. air or "non-shock" hydraulic.
Temperature - Operating temperature range from a minimum of 10° F (-12°C) to a maximum of 200° F (93° C).
Cushions - Popper cushions can be specified for either or both ends of the Series "D" cylinder. Standard cushion length is one inch, with optional lengths of two, four, and six inches. Each standard cushion increases the cylinder length by one inch.
K SERIES:
Non Metallic Bearings - A specially compounded reinforced Teflon material is used for the piston and rod bearings, assuring low friction characteristics. The bearing assembly is easily removed for quick replacement.
Non-lube Operation - Long life K cylinders are specifically designed for non lube operation
Cushions - High energy absorption poppet type adjustable cushions are available as a standard option. The cushion adjusting screw is normally located in position No. 2
Piston Rod - Hard Chrome plated steel ground and polished. Two wrench flats standard on all bore sizes. Small male national fine threads are standard. All other threads available as options.
Tubing - Hard coated I.D. aluminum for corrosion resistance and low friction.
Seals - All dynamic seals are self adjusting Block Vee Buna-N U-cups.
End Caps - Machined high strength aluminum alloy.
Pressure rating - 250 PSI air or "non stick" hydraulic
Temperature - Operating temperature range from a minimum of 10° F (-12° C) to a maximum of 200° F (93° deg C).
